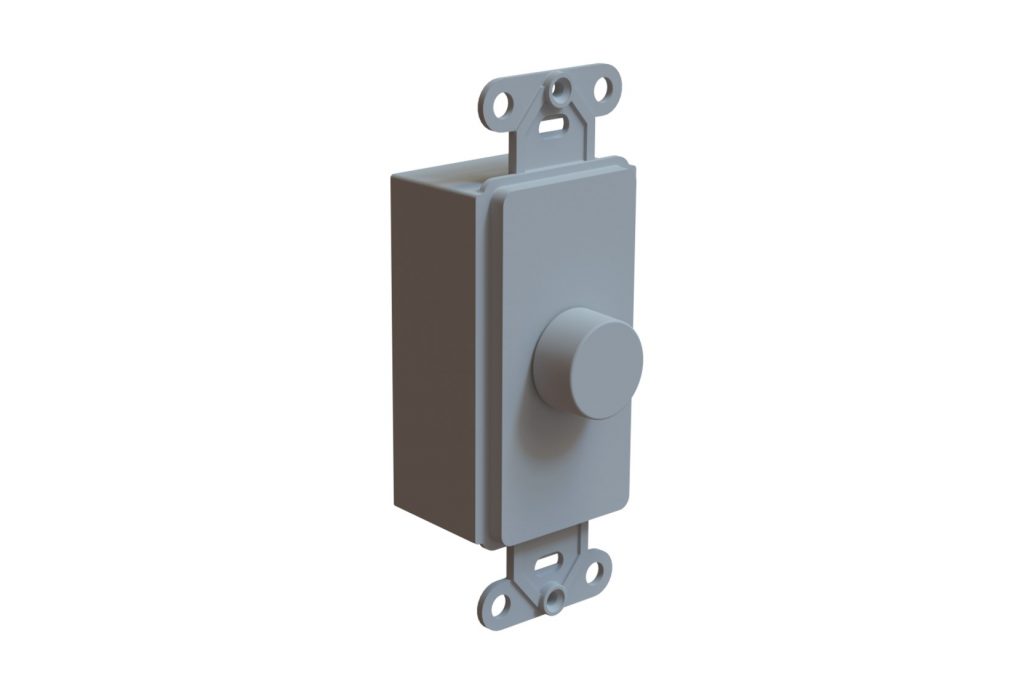

AC – Low Voltage Digital Dimmer Landscape
AC – Low Voltage Digital Dimmer Landscape

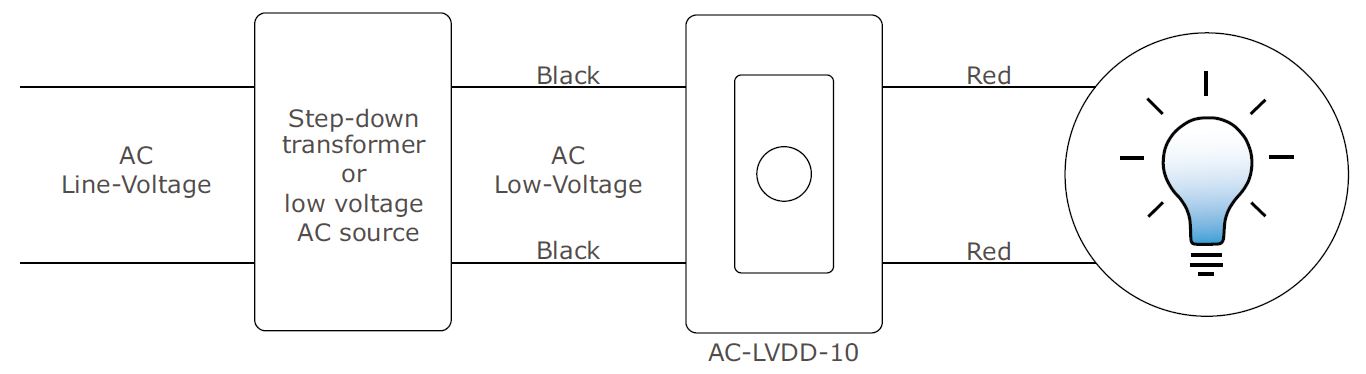

AC – Low Voltage Digital Dimmer Wiring Diagram
AC – Low Voltage Digital Dimmer Wiring Diagram

Features

  • Lower installed cost than dimmable transformers
  • Dims most bulbs including dimmable LEDs
  • Perfect for indoor and outdoor applications
  • Overload indicator (bulbs blink to indicate overload)
  • Short-circuit protection with simple recovery
  • Transient protection (supply side and load side)
  • Extremely smooth trailing edge dimming
  • IP67 (dustproof, water resistant, potted electronics)
  • Intelligent soft-start

Technical Specs:

  • Current capacity: 10A
  • 12VAC – 24VAC operation
  • Max load = 120W at 12V / 240W at 24V
  • No minimum load required
  • Auto frequency adjust (40Hz – 400Hz)
